FDX HOT CUBE XL - 23/250

SATURN 150 GOLD - Acqua Calda

FDX HOT CUBE XL

23/250


Pressure washer with petrol engine - heavy-duty professional use - made in Italy. It offers maximum pressure 250 bar, flow rate up to 1380 l/h. This pressure washer is equipped with a 26 HP Kohler KDW1003 diesel engine. The maximum temperature is 85÷110°C.

  • Technical Sheet
  • Main Features
  • Technical Documentation

23/250

  • Product code
  • Working pressure (bar)
  • Max pressure (bar)
  • Flow rate (l/h)
  • Max flow rate (l/h)
  • Pump type/RPM
  • Max inlet temperature (°C)
  • Max outlet temperature (°C)
  • Motor type
  • Fuel type
  • Boiler fuel tank
  • 36033-00006
  • 30÷240
  • 250.0
  • 400÷1380
  • 1380.0
  • RW / 1450
  • 60.0
  • 85÷110
  • Kohler KDW1003 / 26
  • diesel
  • 45.0
  • Boiler fuel consumption
  • High-pressure hose (m)
  • Machine dimensions (cm)
  • Weight (kg)
  • Packaging dimensions (cm)
  • Quantity per pallet
  • Pallet dimensions
  • Units per 20-ft container
  • Units per 40-ft container
  • With anti-limescale
  • With basin
  • 8.0
  • 10.0
  • 125x85x105
  • 450.0
  • 145 x 134 x 150
  • 1.0
  • 145 x 134 x 150
  • 4
  • 8
  • x
  • x

23/250

  • Professional hot water high pressure cleaner for uses without connection to electricity grid.
  • 45 lt Diesel tank with level float and fill up filter.
  • Double coil high efficiency boiler with stainless steel outer casing.
  • Electronic temperature setting system with constant water temperature.
  • Flow-switch operated burner.
  • Safety valve.
  • Boiler thermal protection.
  • Flame control kit.
  • Kohler KDW1003 Diesel liquid cooled engine (26HP).
  • Premium Comet TW / RW pumps.
  • Gearbox (with 1450 rpm pump).
  • Electrical starting.
  • Hours meter.
  • RPM manual regulator.
  • Stainless steel gradual pressure restoration valve with EASY START.
  • Thermostatic valve.

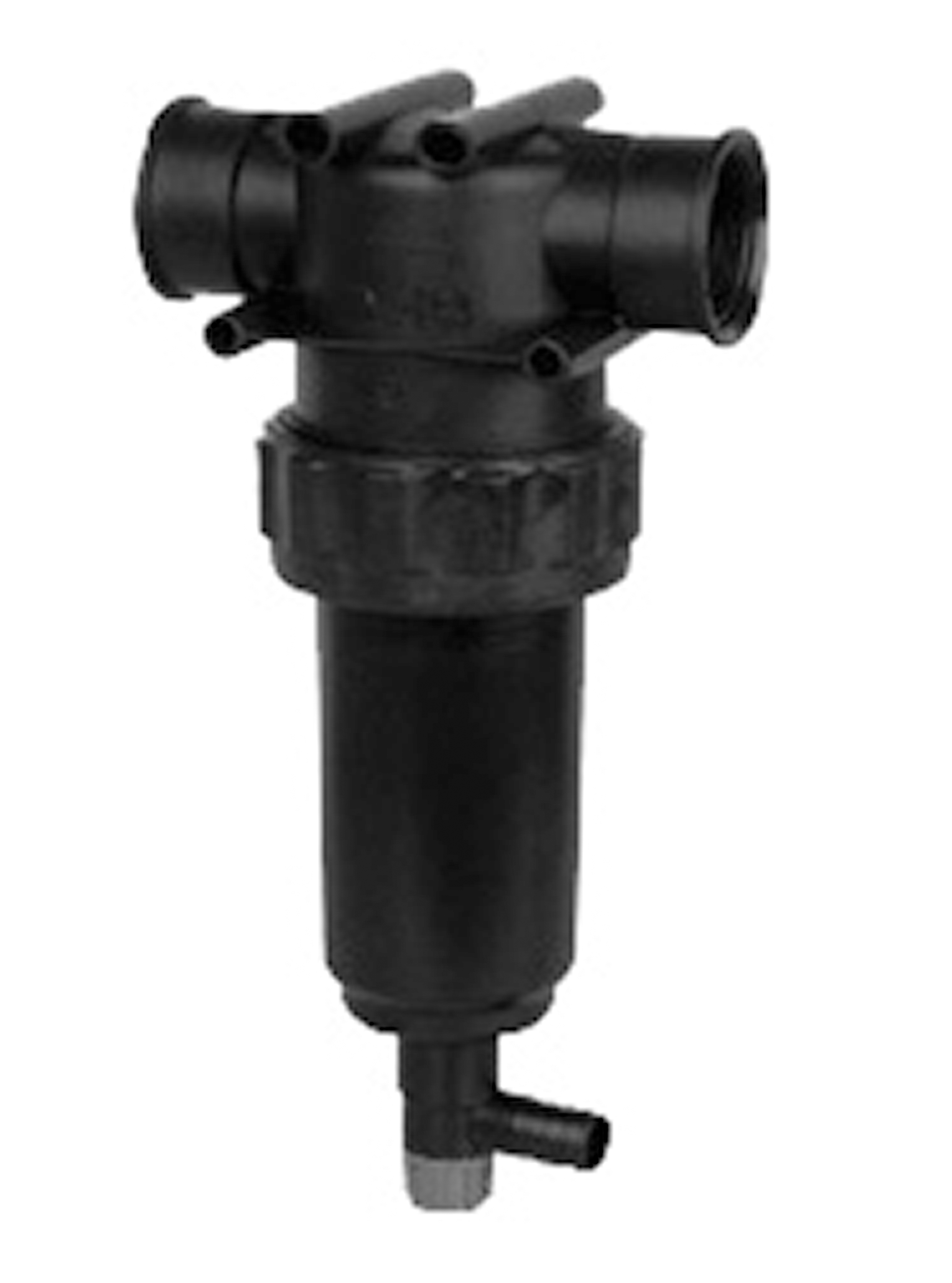

  • Big water filter at pump inlet, readily serviceable cartridge type.
  • Water suction from external tank option.
  • Suitable for high professional use.
